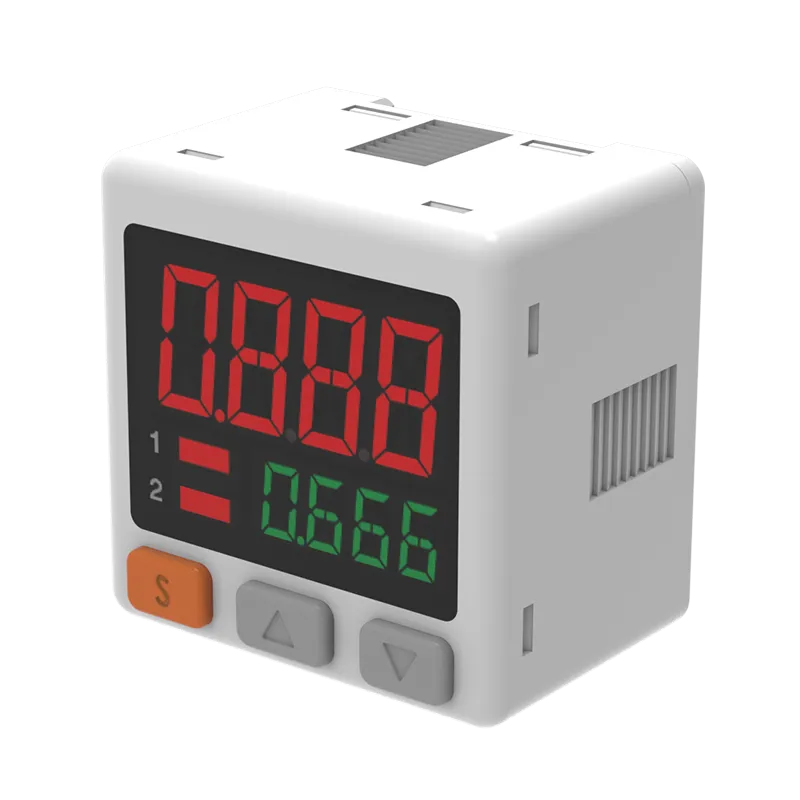

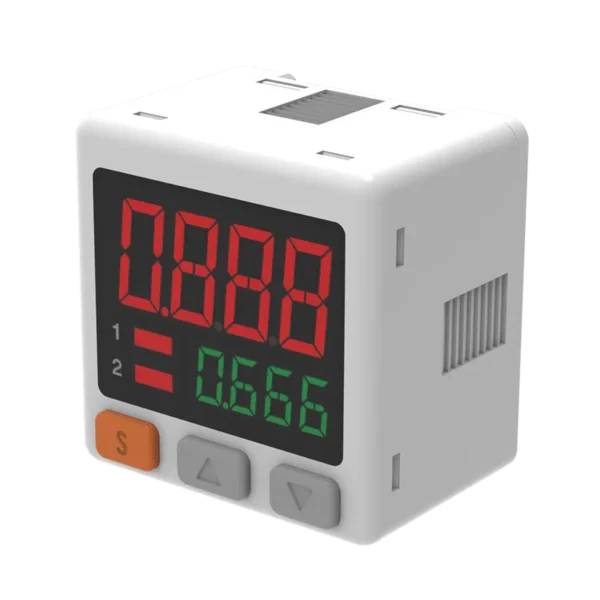

Công tắc áp suất điện tử MQ-30DPH-485 Akusense

Model	MQ-30DPH-485
Working principle	Barometer sensor
Housing	square
Types	High pressure type
Applicable gas	Non-corrosive gas, non-flammable gas (compliant with ISO8573-1:2010[7:4:4])
Display	3-color (red, orange, yellow-green) display (sampling rate; 4 times/SEC) temperature characteristics
Rated pressure range	0.101 ~ 1.000 MPa
Set pressure range	0.100 ~ 1.000 MPa
Maximum withstand pressure	1.5 MPa
Comparison output	PNP collector open output, maximum load current: 100mA, maximum supply voltage: 24V DC, internal pressure drop: below 1.5V
Display accuracy	±1% F.S. ±1 digits (operating temperature 25±10 ° C)
Repeatability	±0.2% F.S.±2 digits
Power supply voltage	12~24V±10%
Current Consumption	< 45mA (no load)
Display resolution at different pressure units	0.001(MPa),0.01(kgf/cm2),0.01(bar), 0.1(psi)
Voltage-type analog output	None
Current-type analog output	None
MODBUS function	Have
Temperature characteristics	Within 1% F.S., comparison reference temperature 25℃(0~50℃ use range)
Operating environment temperature	0~50℃ (no condensation, no icing)
Storage Temperature	-10~50 ° C (no condensation, no freezing)
Operating environment humidity	35 to 85%RH (no dew)
Storage Humidity	35 to 85%RH (no dew)
Protect degree	IP65
Connection Method	Internal thread: M5; External thread: R1/8(Asian standard, i.e. PT1/8)
Dimension	30x30x40.3
Material	Plastic
Weight	About 85g (power cable included)
Accessories	1 power cable with terminal, 1 manual
