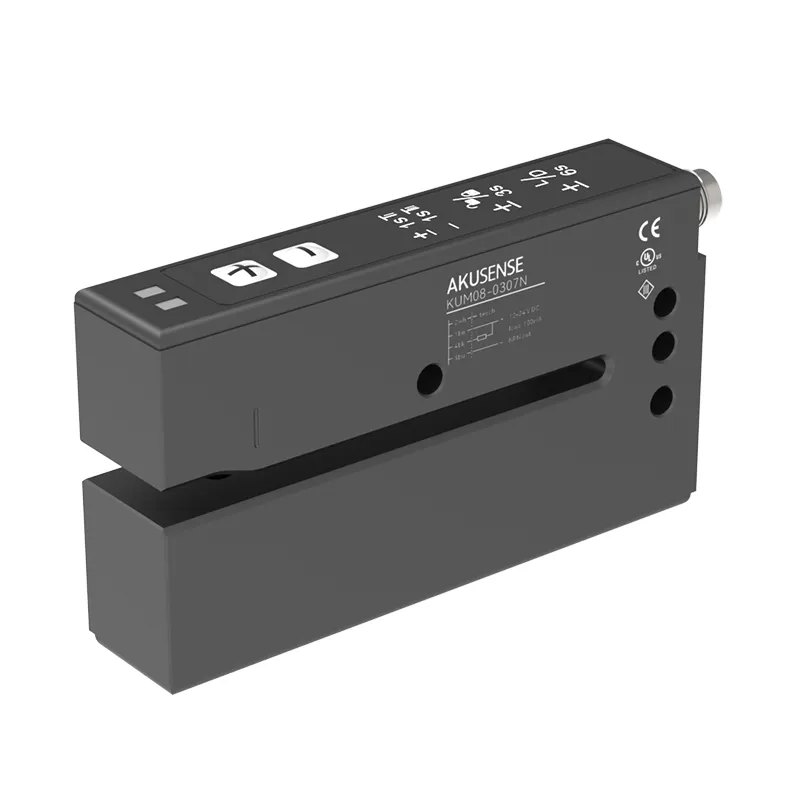

| Model | KUM08-0307P |
| Working principle | Ultrasonic detection |
| Housing style | U-shaped fork |
| Optical working principle | Through-beam |
| Light Source | Ultrasonic |
| Slot Width | 3.2mm |
| Slot depth | 69mm |
| Detecting object | 2mm minimum label gap |
| Indicator light | Output function: Red LED, operational status: Green LED |
| Switching mode | L.on (light-on action)/D.on (dark-on action) switchable |
| Output Mode | PNP collector open |
| Response Time | 0.3ms |
| Switching frequency | 1.5kHz |
| Repeat accuracy | ±0.2 |
| Operating Voltage | 12~24V DC±10% |
| Power Consumption | ≤45mA |
| Residual Voltage | <2V@1L=100mA |
| Load Current | ≤100mA |
| Insulation Resistance | DC500V insulation resistance >50MΩ |
| Withstand Voltage | Insulation voltage of VC100V when current <0.1mA |
| ProtectiOn Circuit | short-circuit protection |
| Operating temperature | -5~55℃ |
| Storage Temperature | -20~70℃ |
| Operating humidity | 35~95%RH(no condensation) |
| Storage Humidity | 35~95%RH(no condensation) |
| Environmental illumination | Unavailable |
| Vibration Resistance | 10~50Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Protection rating | IP65 |
| Connection Method | M8/4-pin plug |
| Dimensions | 85.5×47.3×18.2mm |
| Material | Aluminum |
| Weight | 0.019kg |
