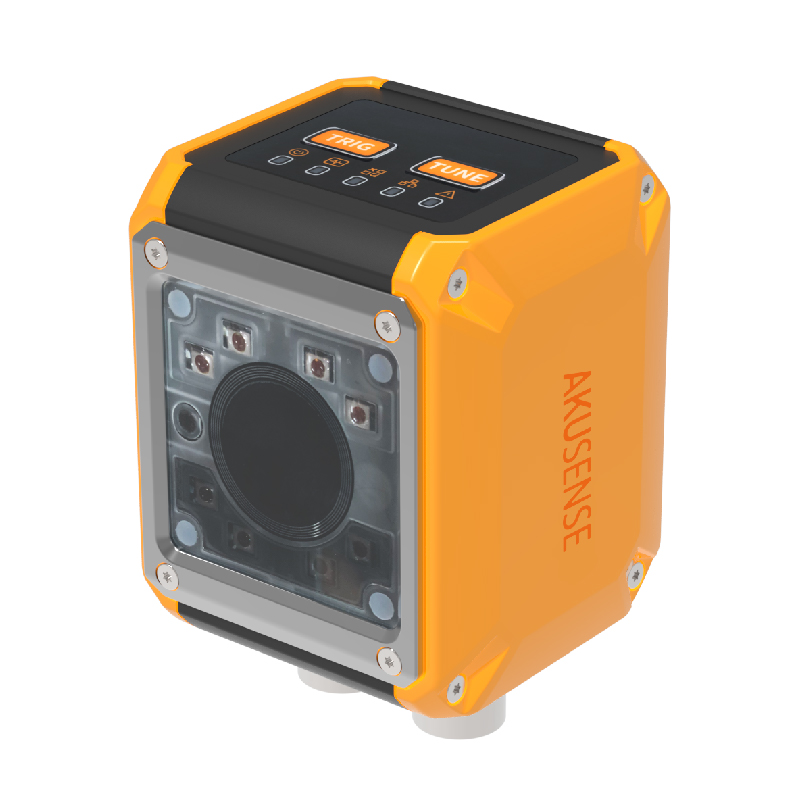

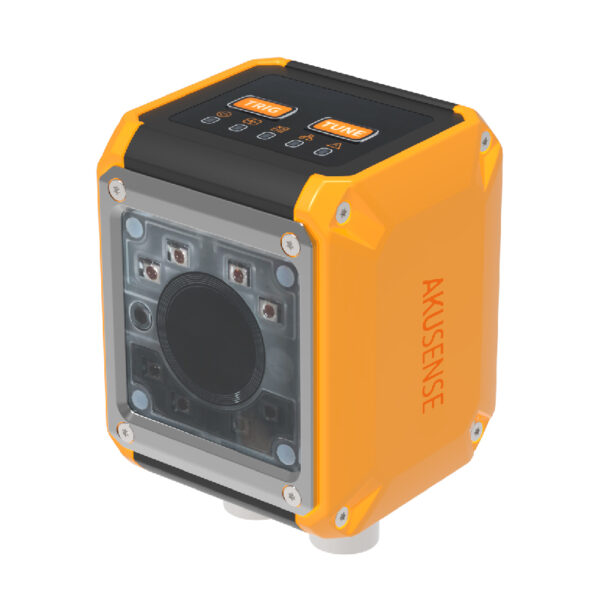

| Model | RCD-AI23024-X08RD-S |
| Working principle | CMOS |
| Enclosure type | Square |
| Detection Range | 100~1000mm |
| Field of View | Max. 480mmx300mm(@1000mm distance, 8mm focal length) |
| Focal Length | 8mm |
| Focus Adjustment Method | Mechanical focusing |
| Resolution | 1920×1200 |
| Light Source | Polarized red light |
| Code Type | One-dimensional Code :Code 39,Code93,Code128,EAN-8,EAN-13,Interleaved 2 of 5,UPC,Pharmacode; QR code :QR code, DataMatrix |
| Color/black And White | black and white |
| Shutter | Overall |
| Indicator light | Location indication :1 green light point indicates the scanning location center area; Status indicator :5 status leds and buzzers |
| Image Sensor Size | 3μmx3μm |
| Target Surface Size | 1/2.6″ |
| Maximum Reading Speed | 60 per second |
| Exposure Time | 20μs~1sec |
| Gain | 0dB~255dB |
| Operating Voltage | 24VDC |
| Power Consumption | 15W |
| Output type | Two input control, optocoupler isolation – support NPN, PNP type; Three output control, optocoupler isolation |
| Communication Protocol | TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, Fins, MELSEC/SLMP, Serial |
| Communication Interface | RS232, Ethernet |
| Operating temperature | 0~45℃ |
| Storage Temperature | -20-70℃ |
| Humidity | 5% to 95%RH(non-condensing) |
| Protection level | IP67 |
| Connection Method | Cable connection |
| Dimensions | 58×53.5x83mm |
| Weight | About 220g |
| Accessories | M12-12 Pin-3M (3M high flexibility) M12-8 Pin-3M (3M high flexibility) L-shaped mounting bracket, 24V power adapter (optional), screw pack |
