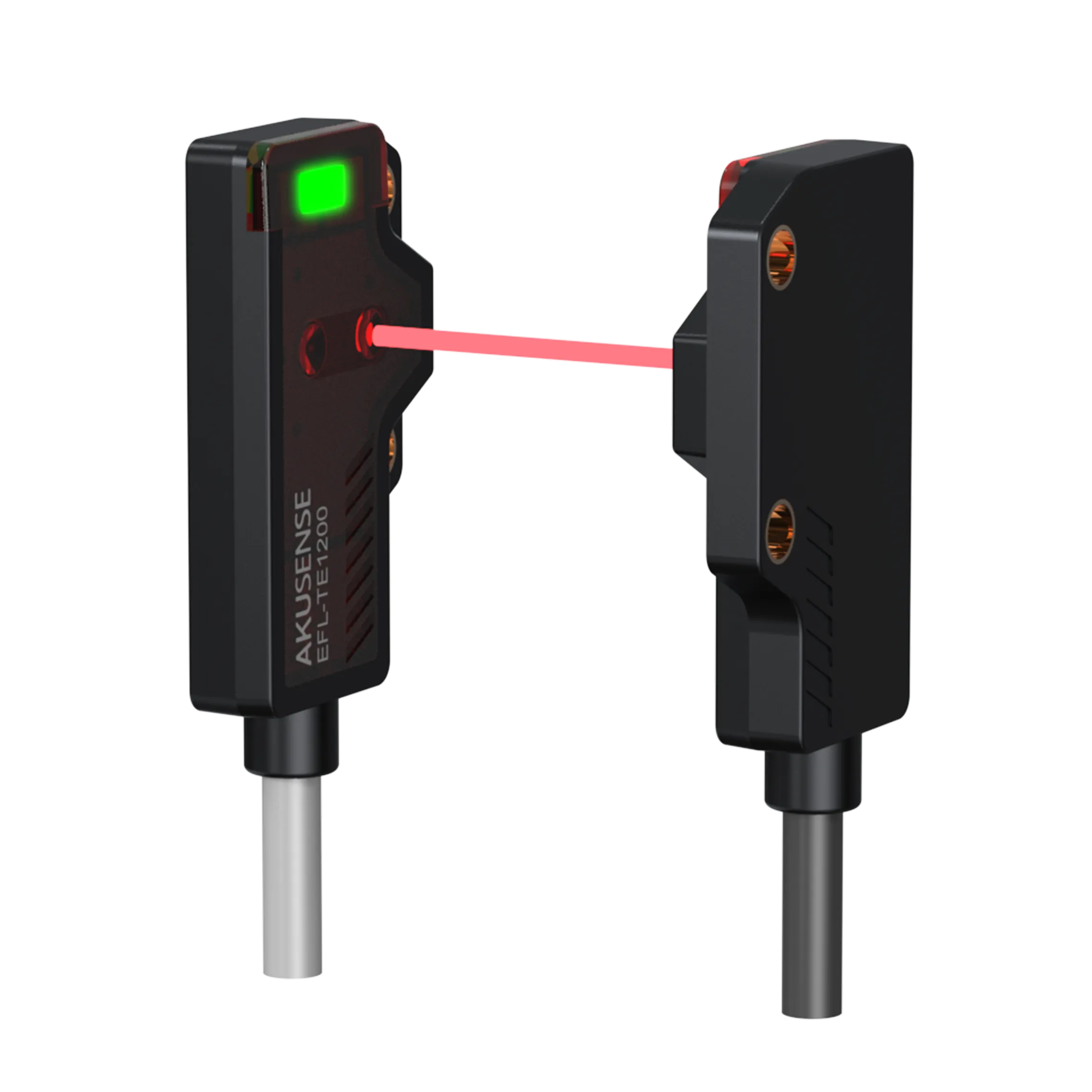

| Model | EFL-TE1200PC |
| Working principle | Photoelectric sensor |
| Housing style | Flat and Square |
| Optical working principle | Front Opposite Emission |
| Detection Range | 1200mm |
| Spot Size | At 1200mm: 22*24mm (Red VCSEL) |
| Detected Object | φ1mm Opaque Object |
| Light Source | Red VCSEL 680mm (Modulated) |
| Indicator light | Output Indicator Light: Orange, Power Indicator Light: Green |
| Sensitivity Adjustment | Non – adjustable |
| Switch Mode | L.on (Light – on Action)/D.on (Light – off Action) Model Selectable |
| Output Mode | NPN or PNP Collector Open Circuit |
| Response Time | ≤1ms |
| Operating Voltage | 12~24V DC |
| Residual Voltage | <1.5V |
| Insulation Resistance | ≥50MΩ (500VDC) Between Power Terminal and Enclosure |
| Operating temperature | -20℃~+55℃, No Freezing |
| Storage Temperature | -30~+60℃ (No Freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Ambient light | Incandescent Lamp ≤ 3000Lux; Solar Lamp ≤ 10000Lux |
| Vibration Resistance | 10~55Hz, Amplitude 1.5mm, X/Y/Z Axes, 2 Hours Each |
| Protection rating | IP67 |
| Dimensions | 24mm*14mm*4mm |
| Material | Enclosure: PC; Lens: PC |
| Accessories | Mounting Screw |
