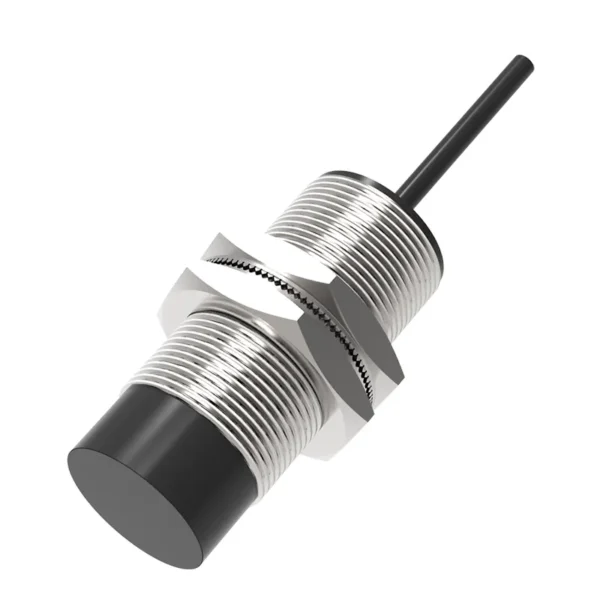

| Model | TDN30-25HC |
| Working principle | Inductive sensor |
| Housing | Cylindrical |
| Installation type | non-flush |
| Sensing distance | 25mm±10% |
| Thread size | M30 |
| Sensing Surface Material | PBT |
| Detected objects | Metal sensor |
| Indicator | Action Indicator: Yellow LED |
| Sensing range adjustment | None |
| Switching output | Normally closed |
| Output Mode | Reed switch |
| External input | None |
| Switching frequency | 0.2 kHz |
| Repeatability | 2% |
| Hysteresis | 15% |
| Operating Voltage | 10~60V DC±10% |
| Current Consumption | 3~100mA |
| Residual Voltage | < 6.0 V |
| Load Current | ≤120mA |
| Leakage Current | < 0.8 mA |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Circuit Protection | Short circuit protection |
| Operating temperature | -25~75℃ |
| Operating humidity | 35~85% |
| Enclosure rating | IP67 |
| Connection type | 2m/2 wire cable |
| Dimension | M30x61.0mm |
| Material | Nickel-copper alloy +PBT |
| Weight | 0.12kg |
| Accessories | Nut M30x1.5 |
