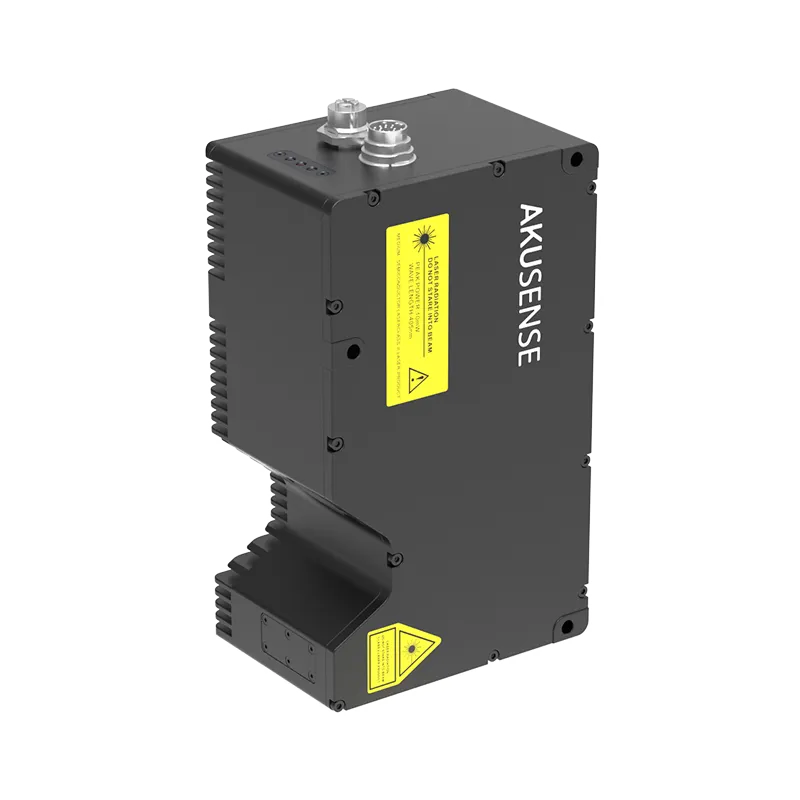

Cảm biến Laser dòng ESX-H20 Akusense

Danh mục: Cảm biến Akusense Thẻ: ESX-H20 Akusense Thương hiệu: Akusense

Model	ESX-H20
Working principle	Laser 3D measurement displacement sensor
Housing	Retangular
Optical working principle	Reflection
Mounting distance (CD)	50mm
Z-axis Depth of Field (MR	18mm
Near end FOV	45mm
Reference distance	51mm
Distal FOV	56mm
Contour points	4096
Light source wavelength	405nm
Laser Class	2M/3R
Laser output power	10mW
Reflection Angle	38 °
X directional resolution	11.1~13.6μm
Z-axis repetition accuracy	0.3μm
Linearity in Z direction (+/-% of MR)	0.02%
Scanning Speed	1200~16000Hz
Operating Voltage	24V DC±10%
Power Consumption	11W
Communication Interface	Gigabit network interface, 24VTTL input 1, output 1, RS485 bidirectional IO 2
Operating temperature	0~ 50℃
Ambient Illumination	Incandescent≤10000lux
Vibration Resistance	10~55Hz, double amplitude 1.5mm, 2 hours each in X,Y, and Z directions
Shock Resistance	Peak acceleration of 15g, duration of 11ms half-sine wave shock
Enclosure rating	IP67
Dimension	190x115x80mm
Housing Material	Aluminum
Weight	1.35 kg
