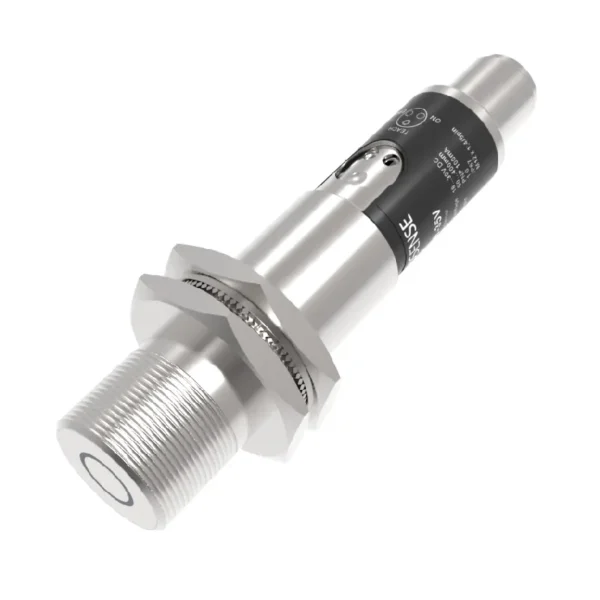

Cảm biến siêu âm Cylindrical Type MD18-35V Akusense

Danh mục: Cảm biến Akusense Thẻ: MD18-35V Akusense Thương hiệu: Akusense

Model	MD18-35V
Operating Principle	Ultrasonic Detection
Enclosure Shape	Cylindrical
Detection Method	Diffuse Reflection
Detection Range	50~400mm
Divergence Angle	≤12°
Resolution	0.1mm
Detection Range Adjustment	Teach button
Output Mode	NPN+0~10V
Response Time	25ms
Switching frequency	20Hz
Repeatability	1mm
Hysteresis	2mm
Operating Voltage	18~30VDC
Operating current	≤30mA
Residual Voltage	≤10μA (30VDC)
Load Current	≤100mA
Voltage Drop	≤2.2V (100mA)
ProtectiOn Circuit	Short circuit protection/reverse polarity protection/overload protection
Temperature Compensation	None
Working Temperature	-25~60℃
Protect degree	IP67
Connection Method	M12/5 pin connector
Dimensions	M18x86. 0 mm
Material	Stainless steel
Weight	0.062 kg
Accessories	Nut M18x1
Ultrasonic Frequency	300kHz
Indicator light	Run/Error mode: LED; Switch status: LED
