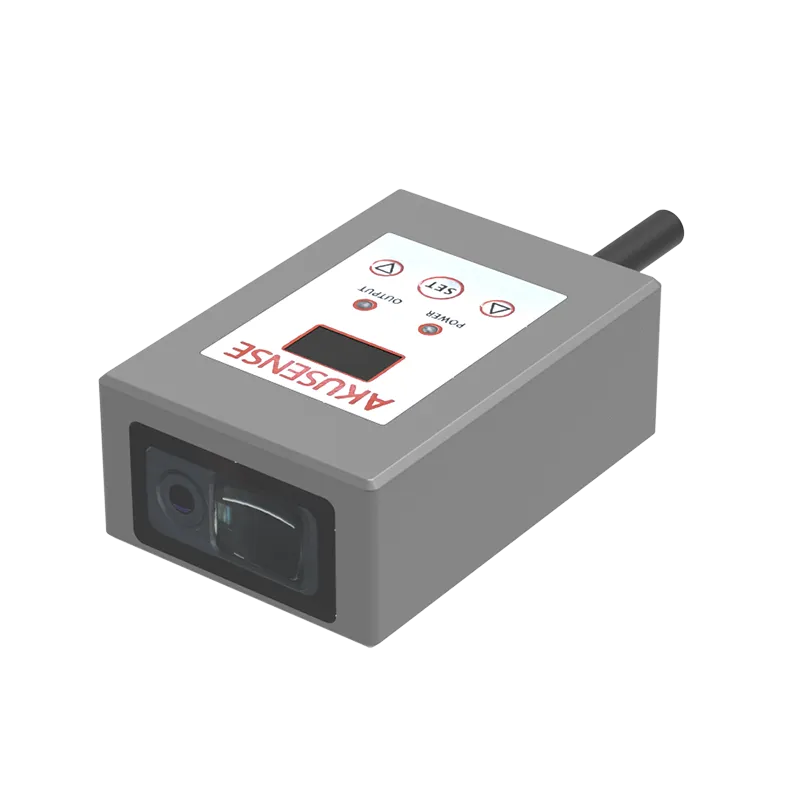

| Model | PX-FM80-IV-232 |
| Working principle | TOF principle |
| Housing | square |
| Optical working principle | Diffuse reflection |
| Measuring Range | 0.05-80 – m |
| Light Source | Red laser, 655nm, Class 2 |
| Working mode | Single measurement/continuous measurement/rapid measurement |
| Data output rate | Single measurement: 1s Continuous measurement: 200ms Quick measurement: 30-100ms |
| Resolution | 1mm |
| Repeatability | < ±2mm |
| Operating Voltage | 24VDC±10% |
| Current Consumption | Normal 44mA, maximum 65mA |
| Load Current | 150mA (MAX) |
| Input Voltage | 12~26V DC |
| Output Voltage | Active low; 2 independent output |
| Communication mode | RS232/4-20mA/0-10V |
| Operating temperature | -10℃~40℃ |
| Storage Temperature | – 20 ℃ to 60 ℃ |
| Operating humidity | 5% ~ 95% |
| Storage Humidity | RH85% |
| Ambient Illumination | Ambient light ≤10000 Lux |
| Enclosure rating | IP65 |
| Connection type | 2M cable, terminal opening |
| Dimension | 42*61.2*23.5mm |
| Material | Aluminum alloy housing |
| Weight | 200g |
