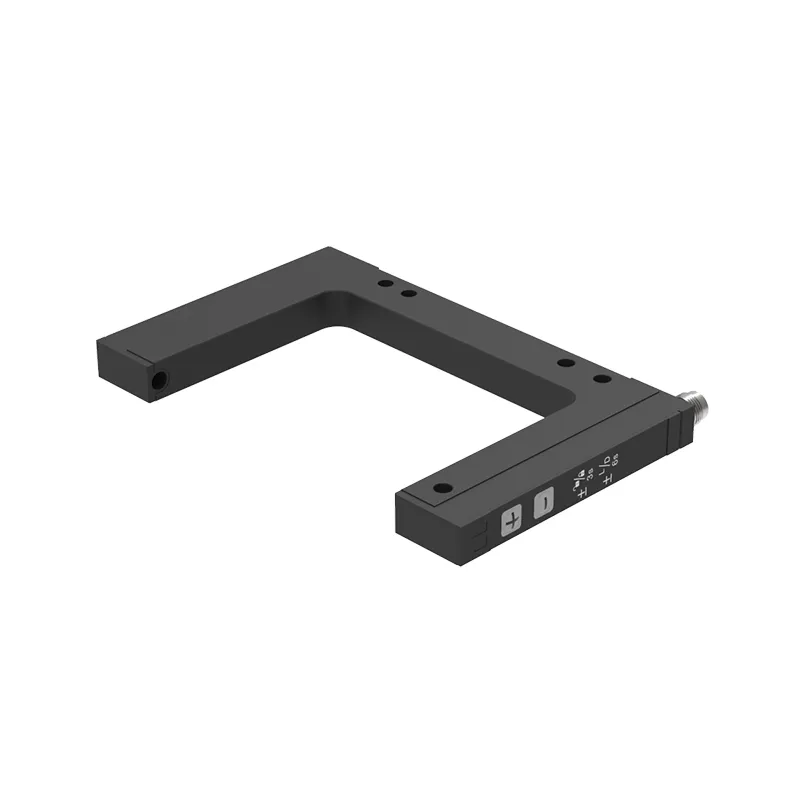

Cảm biến khe rộng KLM06-0806NP Akusense

Model	KLM06-0806NP
Working principle	Photoelectric sensor
Housing style	Shape U
Optical working principle	Through-beam
Light Source	Red laser, 670nm (modulated)
Slot Width	80mm
Slot depth	59mm
Detecting object	0.05mm
Indicator light	Output function: Red LED, operational status: Green LED
Switching mode	L.on (light-on action)/D.on (dark-on action) switchable
Output Mode	NPN and PNP collector open
Response Time	0.1ms
Switching frequency	20kHz
Repeat accuracy	<0.2mm
Hysteresis	<0.2mm
Operating Voltage	12~24V DC±10%
Power Consumption	≤40mA
Residual Voltage	≤2.0V（100mA）
Load Current	≤100mA（24VDC）
Insulation Resistance	≥50MΩ（500VDC）
Withstand Voltage	1000VAC (50/60Hz)
ProtectiOn Circuit	Reverse polarity protection/short-circuit protection
Operating temperature	-20~50℃(no freezing)
Storage Temperature	-30~80℃(no freezing)
Operating humidity	35~85%RH(no condensation)
Storage Humidity	35~95%RH(no condensation)
Environmental illumination	Incandescent light ≤1000 Lux; LED light ≤1000 Lux; Sunlight ≤10000 Lux
Vibration Resistance	10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes
Protection rating	IP65
Connection Method	M8/4-pin plug
Dimensions	74.0×10.0x118.5mm
Material	Aluminum, glass
Weight	0.068kg
