I. Giới thiệu
II. Thông số
| Product | Dissolved Oxygen meter(Membrane type) |
| Model | SUP-DM2800 |
| Measure range | 0-20mg/L,0-200%,0-400hPa,-10~60℃ |
| Resolution | 0.01mg/L,0.1%,1hPa |
| Accuracy | ±1.5%FS |
| Temperature Type | NTC 10k/PT1000 |
| Auto A/manual H | -10-60℃ Resolution； 0.1℃ Correction |
| Correction accuracy | ±0.5℃ |
| Output Type 1 | 4-20mA output |
| Max.loop resistance | 750Ω |
| Repeatblitiy | ±0.5%FS |
| Output Type 2 | RS485 digital signal output |
| Communication protocol | Standard MODBUS-RTU(customizable) |
| Power supply | AC220V±10%50Hz/60Hz 5W Max 50Hz/60Hz |
| Alarm relay | AC250V,3A |
| Relative humidity | (10~85)%RH |
| Operation temperature | 0~60℃ |
| Storage condition | Temperature:15~65℃ Relative humidity:(5~95)%RH |
| Dimension | 100mm*100mm*150mm(H*W*D) |
| Ingress protection | IP54 |
| Weight | 0.65kg |
III. Nguyên lý đo

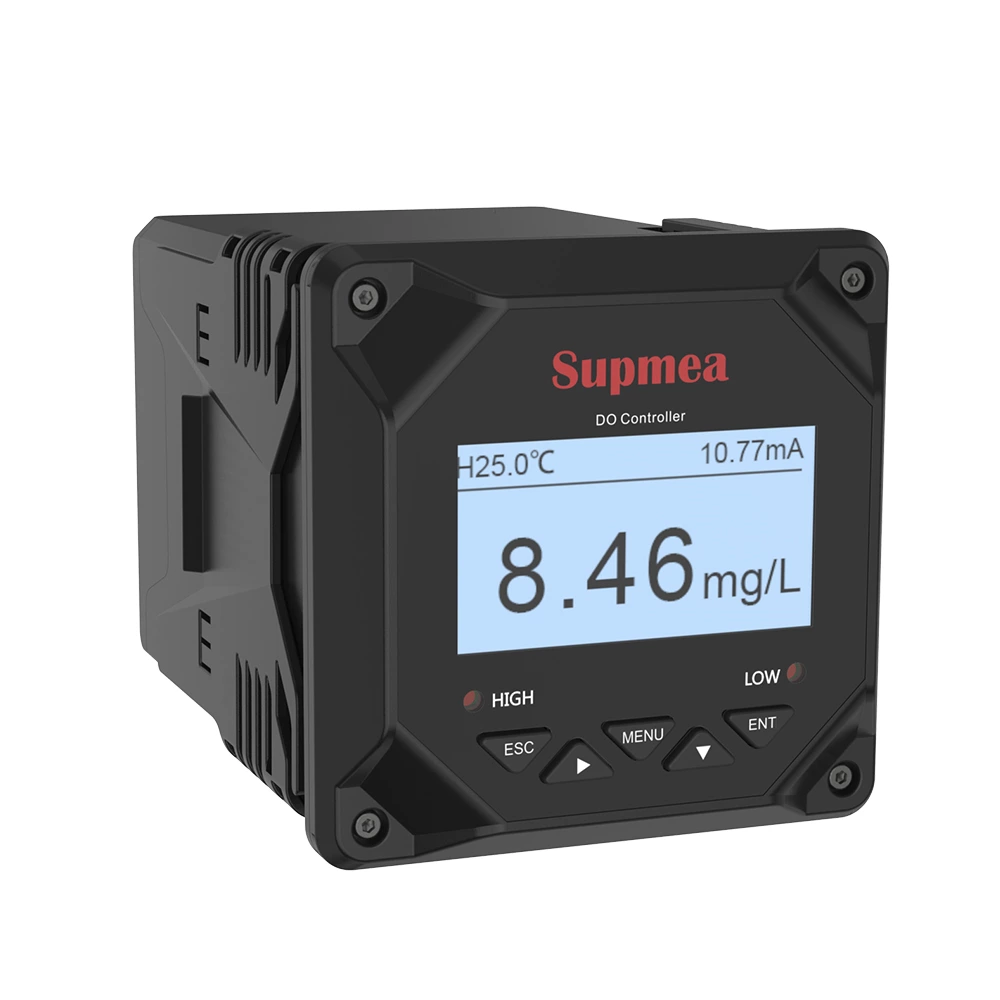

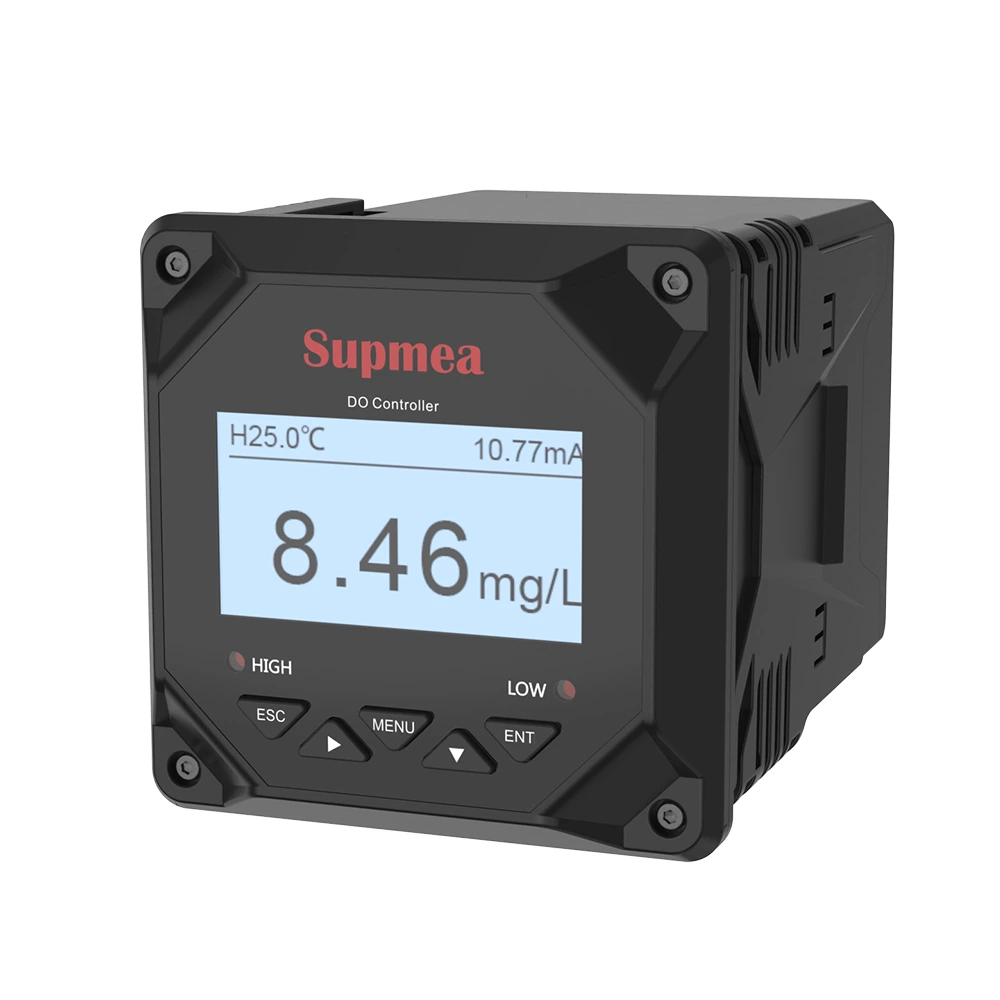

IV. Hình ảnh
