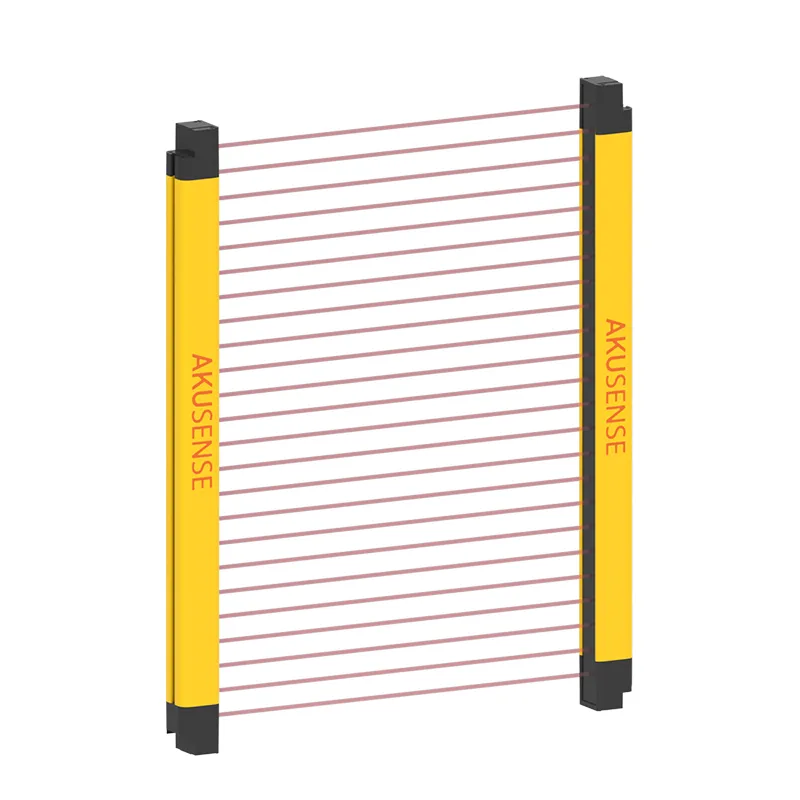

Cảm biến quang Economical Type BKL40-T4806PC Akusense

Model	BKL40-T4806PC
Working principle	Photoelectric sensor
Housing	Array
Optical working principle	Thru-beam
Light Source	Infrared light (modulated)
Beam Pitch	40mm
Number of beams	48 beams
Protection Height	1926mm
Protection Distance	0.1~6m
Mini. detectable object	Opaque body above φ45mm
Output Mode	PNP
Synchronization Type	Optical sync, line sync
Response Time	≤10ms
Operating Voltage	12~24VDC±10%
Current Consumption	≤200mA
Power Consumption	3~8W
Residual Voltage	≤1.5V (150mA)
Insulation Resistance	≥10MΩ (500VDC) between power terminal and housing
Dielectric strength	1000VAC (50/60Hz), 1 minute between the power terminal and housing
ProtectiOn Circuit	Reverse polarity protection/short circuit protection/surge protection
Operating temperature	-15~55℃(without freezing)
Storage Temperature	-20~60℃(without freezing)
Operating humidity	35~85%RH (no condensation)
Storage Humidity	35~95%RH (no condensation)
Ambient Illumination	Incandescent lamp ≤3000Lux; LED lamp ≤3000Lux; Sunlight ≤10000Lux
Vibration Resistance	10 to 150Hz, double amplitude 1.5mm, X/Y/Z axis, 2 hours each
Protection class	IP65
Connection type	Cable
Dimensions	146~1926x30x30mm
Material	Aluminum
Weight	0.75~9.65kg
Accessories	Mounting bracket, mounting screws, M12/6PIN plug cable x2
