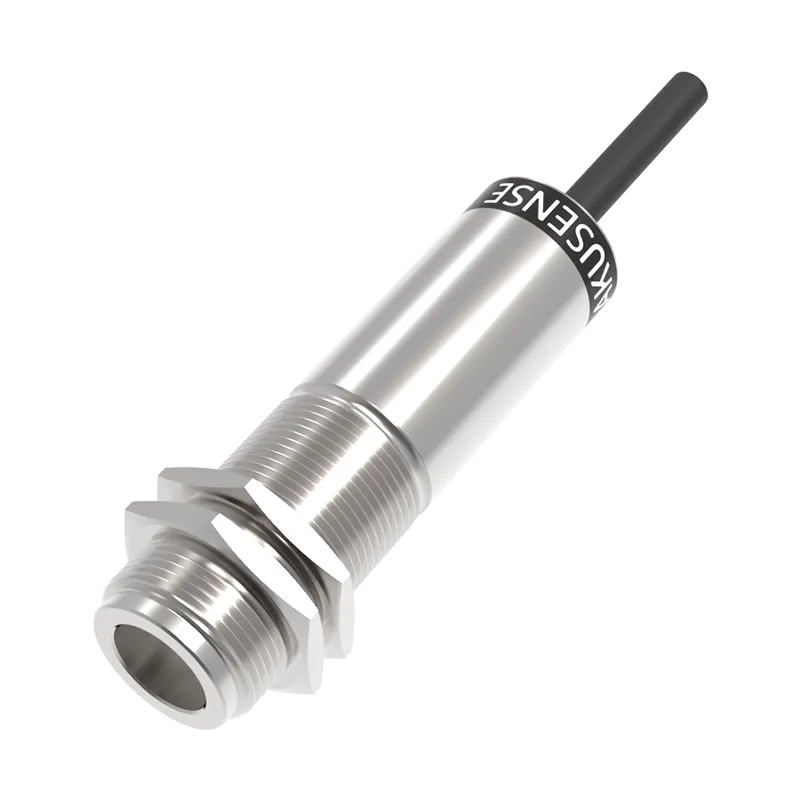

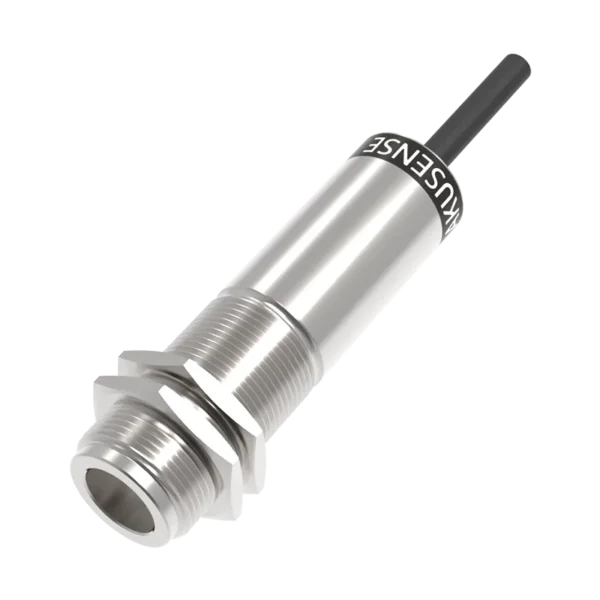

Cảm biến nhiệt độ TTS-800V1 Akusense

Model	TTS-800V1
Working principle	Non-contact temperature sensor
Housing	Cylindrical
Measurement Range	0℃~800℃
Spectral Range	8~14um
Resolution	1℃
Optical Resolution	20:1
Emissivity	0.95
Temperature Accuracy	±2% of measured value
Repeatability	±1% of measured value
Response Time	300ms
Operating Voltage	12~24V DC
Current Consumption	≤8mA
Analog Output	0~5V
Operating temperature	0℃~60℃
Storage Temperature	-20℃~80℃
Operating humidity	10~95%(no condensation)
Enclosure rating	IP65
Connection Method	2m/4-core cable
Dimensions	M18x67mm
Material	Stainless steel
Weight	About 122g
Accessories	Nut
