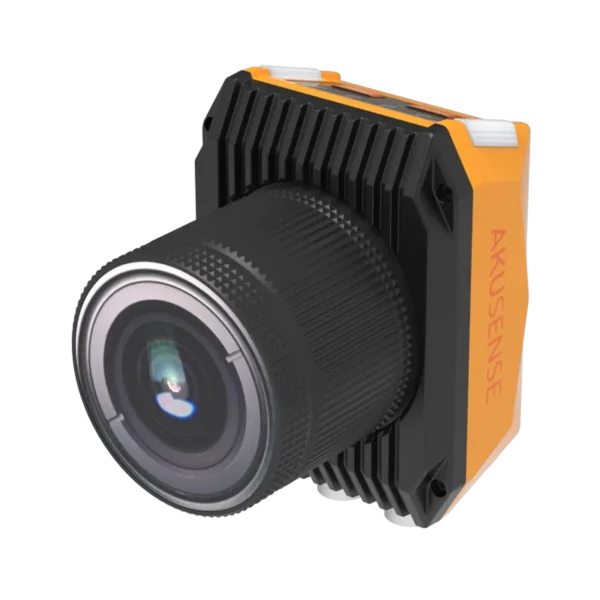

| Model | RCD-AI500-C |
| Working principle | CMOS |
| Enclosure type | Square |
| Detection Range | Based on lens specifications |
| Focus Adjustment Method | C-port |
| Resolution | 2448×2048 |
| Light Source | External light source |
| Code Type | One-dimensional Code: Code 39, Code93, Code128, EAN-8, EAN-13, Interleaved 2of5, UPC, Pharmacode; QR code: QR code, DataMatrix |
| Color/black And White | black and white |
| Shutter | Overall |
| Indicator light | 1 green blight indicating the scan location center area, 5 status leds and buzzer |
| Image Sensor Size | 2.74μmx2.74μm |
| Target Surface Size | 1/1.8″ |
| Maximum Reading Speed | 30 per second |
| Exposure Time | 20μs~1sec |
| Gain | 0dB~255dB |
| Operating Voltage | 24VDC |
| Power Consumption | 15W |
| Output type | Two input control, optocoupler isolation – support NPN, PNP type; Three output control, optocoupler isolation |
| Communication Protocol | TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Fins, Serial |
| Communication Interface | RS232, Ethernet |
| Operating temperature | 0~45℃ |
| Storage Temperature | -20-70℃ |
| Humidity | 5% to 95%RH(non-condensing) |
| Protection level | IP67 |
| Connection Method | Cable connection |
| Dimensions | 74.5×100.5×93.1mm |
| Weight | About 450g |
| Accessories | M12-12 Pin-3M (3M high flexibility) M12-8 Pin-3M (3M high flexibility) L-shaped mounting bracket, 24V power adapter (optional), screw pack |
